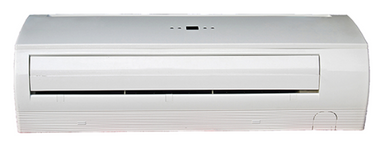

ECO HIGHWALL SERIES SWC-18 ECM 120V

Ideal for both residential and commercial projects, high wall mount fan coils are today's most popular style of fan coil.  These are the type used with mini-split or ductless heat pumps and air conditioners except that instead of using refrigerant, our hydronic models run on hot or chilled water to heat and cool the air in the room.  Models are available in several different capacities or sizes, an assortment of control valve configurations and a wide range of thermostat and building automation control options.  These fan coils can be used as the primary heating and cooling source in a room or they may be used to supplement a floor heating system by offering chilled water cooling and dehumidification during the summer and optional hot water or electric strip heating as a secondary heat source.

We currently stock the popular SWC-18 with Flex controls.  This model offers the most flexibility by accepting control from 24VAC thermostats as well as Fan Coil Thermostats with support for variable fan speed.  For conventional thermostats three speed taps are provided but for ideal control you will want to use a thermostat with 0-10V support.  These models do not come with a remote and none is available; for special orders you can request the S-PCB models which offer Modbus thermostat control as well as IR remote.

Cooling output is 12.6 MBTU at 45°F chilled water temp and has roughly the same heat output at 115°F or higher when using higher water temps in heating mode.  Check product info below for exact ratings.
