DX2W-3-096-4 Pipe 8 Ton Air to Water Module (2 x 4T) - Thermatlantic Energy Products Inc.
 Loading... Please wait...
  • Tandem showing buffer tank connections for both the heat exchanger and the distribution system through the 3 way valve.

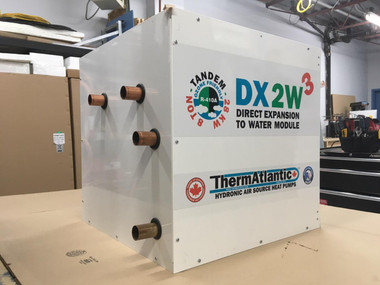

  • Picture showing the 4 refrigeration connections on the back of the unit.  Each pair goes to one outdoor heat pump.
  • This is the view from the top removable panel showing the mixing valve assembly over the heat exchangers.
  • Tandem installation using a DX2W-3 module connected to two heat pumps outside, 120 gal buffer tank, electric boiler backup, floor heating throughout and a hydronic air handler and a fan coil for chilled water cooling in summer.

DX2W-3-096-4 Pipe 8 Ton Air to Water Module (2 x 4T)

$11,750.00 $8,995.00
(You save $2,755.00)
SKU:
DX2W-3-096-4P
Current Stock:
1
Quantity:

Product Description

Our smallest DX2W-3 cubes can accomodate two 4 or 5 ton outdoor heat pumps to easily create 8 & 10 ton systems.  Although there are four refrigeration connections on the back of the units, there are only two hydronic connections for the buffer tank which eliminates a lot of time, space and materials in the mechainncal room.  These units also have an integrated 3 way diversion and mixing valve which, like our wall hung units, provides better control over hot and chilled water temperatures as needed.

This item is a 4 pipe refrigeration / 2 pipe hydronic configuration.  Each of the two stages includes bolt-on TXVs, sight glasses, presssure transducers and temperature sensors attached to water inlet & outlet as well as liquid line, all of which are terminated on a terminal strip.  Controls are not included and must be purchased separately.  Desigh flow rate for both stages in tandem is 22 GPM with an approximate pressure drop of 11 PSI.

Warranty Information

5 Years Parts, 1 year labor on indoor split DX2W-3 module.
