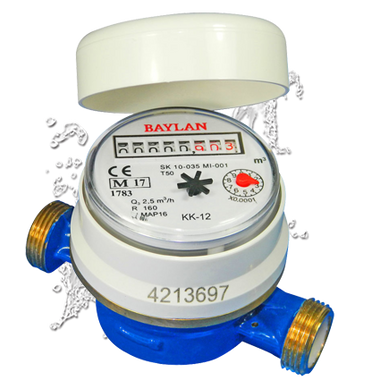

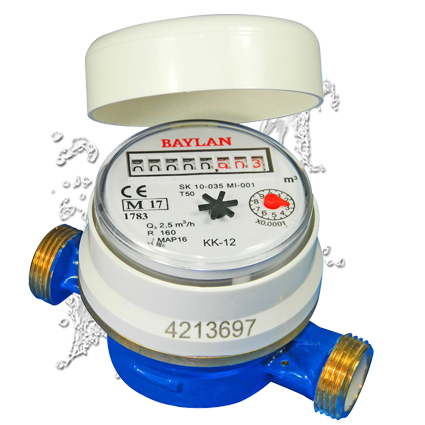

  • Potable Cold Water Meter (shown without pulse emitter or union tail pieces)
  • Example of Hot and Cold meters being installed in an apartment building
  • Example of Hot and Cold meters being installed in an apartment building

Potable Water Meter: Cold < 50°C, H/V, 3/4" NPT

$75.00 $39.00
(You save $36.00)

Choose Your Options

SKU:
KK-12-NP
Current Stock:
250
Quantity:

Product Description

Our line of lead-free brass single jet water meters come can be mounted in either horizontal or vertical orientation.  These meters are manufactured for us in Turkey by Baylan and meet the latest European MID requirements for accuracy and exceed sanitary water requirements when used for potable water metering applications.  Superior features include compact design, vacuum or dry metering mechanism with optical pulse emitter.  Nominal flow rate is 0.26 LPM or 0.068 USGPM with maximum sustainable flow rate of 41.7 LPM or 11 USGPM.  Horizontal mount accuracy is MID R160 - previously classified as Class "C" whereas vertical mount accuracy is a slightly lower MID R80 or Class "B" accuracy; where Class "B" is the potable water metering standard and Class "C" exceeds those standards.  We stock the popular 3/4" models which are appropriate for most residential water metering applications.  Each unit includes a pair of 3/4" brass unions or tail-pieces making them easy to install and service with total length including adapters is 7-5/16" or 186 mm long.
